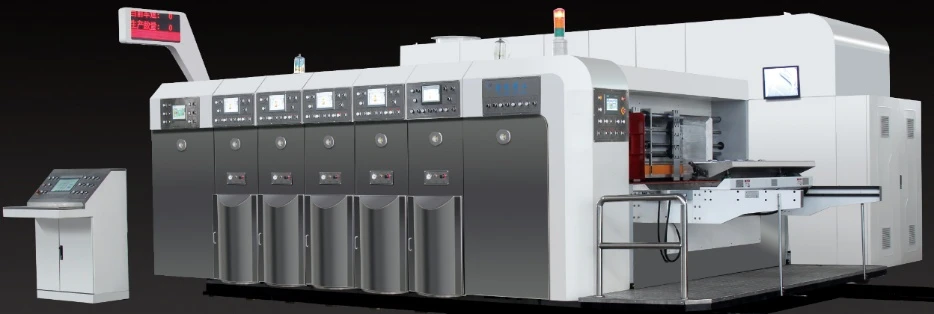

Standard

A. Auto Lead Edge Feeder;

B. Two color printers Mathew quick cliche fixation device);

D. Motorized double slotter;

E. Independent Servo Control Rotary Die Cutter ;

F. Vibration Stripper Auto Stacker

Specs

Max.Sheet size	2200x4800mm
Max. speed:	80pcs/min.
Economical speed:	60pcs/min.
Max.working size：	2200 x 5000mm
Min.sheet size：	500mmX600mm(with help board)
Max.printing area：	2200 x 4800mm
Wall thickness:	HT250, 80mm
Printing cylinder out diameter:	700mm(with cliché: 750mm)
Roller Adjustment distance(left/right)	10mm (cliché cylinder)
Cliché thickness：	7mm

Printers Features

1. Planet gear wheel structure, PLC control, computer display, 360-degree circumferential phase adjustment, steady start, and more accurate placement are all used in printing phase adjustment. 2. A robust chrome-grinded printing cylinder with center and cross lines for easy cliché registration, proper placement, and cliché fixation and adhering.
3. For high-speed running, balance therapy and steady running.
4. The Mathews system is a quick and easy way to repair printing clichés.
5. A fast cliché changing method to expedite order renewal.
6. The printing cylinder's zero position device allows for the fast positioning of cliché changes and corrections for frequent changes to carton specifications. Foot stepping mechanism for fixing and disassembling clichés. phase micro-adjustment.
7. The printing cylinder's manual left/right movement distance is 10 mm.
8. Seamless steel pipe for accurate processing, balance treatment for steady running, grinding and hard chromed.
9. The impression cylinder gap uses an adjustable offset ring with a tight structure, exact placement, and a 0–12 mm adjustment range.

Motorized Double Slotter(motorized adjustment)

1.This On demand box making machine's Slotting head left / right motorized adjustment.
2. Emergency stop box device for safety when operator has problem inside the slotting work area.
3. High precision inverter to adjust the speed, 360 degree adjustment, quick time.
4. Motorized Circumferential Phase adjustment movement. Left/right movement motorized adjustment.
5. On demand box making machine Of Phase zero positioning device to guarantee slotting position sameness.
