Product Overview





Industrial corrugated box printing and converting systems integrate flexographic printing, slotting, rotary die-cutting, and inline gluing/folding. Engineered for high-speed conversion of single, double, and triple-wall corrugated fiberboard into finished shipping containers, e-commerce mailers, and retail-ready packaging (SRP).
Target Operating Environment: High-throughput packaging plants, independent corrugated converters, and automated box-making lines requiring 24/7 reliability, strict color consistency, and minimized material waste.


  • Corrugated Box Inkjet Printer
    This affordable inline machine is the ideal bridge for you. It was created especially for expanding companies like yours. It eliminates the need for a large loan or an expansive factory floor by
  • Inkjet Printer for Corrugated Boxes
    Inkjet printer for corrugated boxes’s Unit clutch 1 To protect the operator's personal safety, the motor control unit has a clutch alarm bell that rings constantly while in use.
  • Inkjet Printer for Carton Box
    Inkjet printer for carton box machine’s body is made of HT250, has a thickness of 60 mm, and is produced using a CNC machine with highpower and great accuracy.
  • Corrugated Flexo Printing Machine
    The blade is 7 mm thick. imported premium alloyed moon-shaped saw slotting blades with excellent grindability, durability, and hardness.
  • Corrugated Printing Press
    All transmission rollers are constructed from premium 45# seamless steel pipes with strong walls, durable chrome plating, hot-mounted shaft heads, and dynamic balancing.
  • Inkjet Printing Press
    Inkjet printing press of the dual-shaft slotting mechanism with independent knife shafts enables unrestricted box height, prevents collisions, and simplifies slotting depth adjustment without the

Machine Types & Configurations


Selecting the appropriate configuration depends on target box styles, daily output requirements, and the degree of inline automation

Top-Print Rotary Die-Cutter (Printer Slotter Die-Cutter)

Designed for complex die-cut trays, pizza boxes, and slotted containers (RSCs) requiring precision multi-color graphics combined with intricate die-cutting in a single pass.

Bottom-Print Flexo Folder Gluer (FFG Complete Line)

Feeds, prints, slots, scores, folds, and glues standard RSCs inline at high mechanical speeds. Optimized for high-volume standard shipping box production.

Modular Single-Pass Printer



Built for short-run, variable-data, or specialized custom packaging where rapid order changeover time takes priority over high-speed mechanical runs.

Key Specifications



Technical Parameter

Standard Configuration Range

High-Speed Heavy-Duty Range

Max. Feeding Width

1,600 mm - 2,200 mm

2,400 mm - 2,800 mm

Max. Mechanical Speed

150 sheets/min

220 - 250 sheets/min

Printing Colors

1 - 4 Colors

Up to 6 - 7 Colors (Water-based / UV)

Registration Accuracy

±0.5 mm

±0.15 mm (Full servo-driven)

Board Thickness

1.5 mm - 11 mm (E, B, C, A, AB, BC flute)

1.0 mm - 15 mm (Micro-flute to Triple wall)

Feeding System

Lead-edge suction feeder

Vacuum transfer continuous feeder

Applications & Material Compatibility

Heavy-Duty Transport Packaging

Industrial shipping containers, appliance outer boxes, and logistics cartons.



E-Commerce & Subscription Mailers

Self-locking mailers and variable-depth boxes requiring clean die-cut edges and crisp exterior branding.

Retail-Ready Packaging (SRP)

High-graphics display boxes requiring tight color registration and solid area coverage without crushing flutes.

Compatible Substrates

Single-wall, double-wall, triple-wall corrugated board, and heavy-duty kraft linerboards.





Customization & Production Line Integration

Modular Scalability: Expandable architecture supporting upgrades from a standalone 2-color printer-slotter to a fully integrated flexo folder gluer with automated pre-feeders, strapping units, and robotic palletizers.


Control Architecture: Industrial PLC-based central control system featuring a touchscreen HMI with job memory storage for up to 9,999 job profiles, enabling automated head and axle positioning.


Utility & Regional Compliance: Configured to match regional industrial electrical standards (e.g., 480V/3-phase/60Hz for North America; 400V/3-phase/50Hz for Europe) with integrated safety interlocks and CE/UL compliant electrical cabinets.

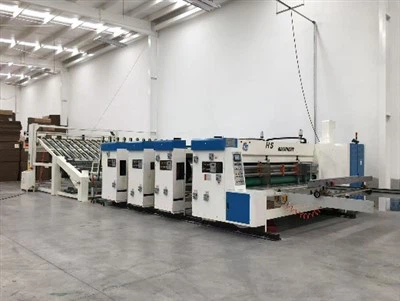

Inkjet Printer for Carton Box

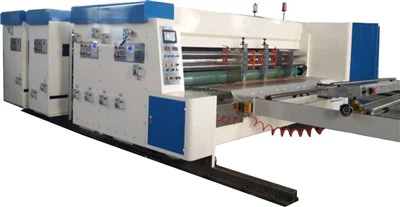

Inkjet Printer for Corrugated Boxes



Manufacturing Capability & Quality Control

Built upon rigorous structural fabrication standards to maintain mechanical stability and register accuracy under continuous, high-load industrial operation:


Structural Annealing: Side frames and main bridge assemblies undergo high-temperature annealing post-welding to relieve internal stress, preventing frame distortion and maintaining tight mechanical tolerances over years of operation.


Precision Machining: Printing cylinders, impression rolls, and anilox rolls are dynamically balanced, hard-chrome plated or ceramic-coated, and ground to sub-micron tolerances to eliminate ink streaks and vibration.


Factory Acceptance Testing (FAT): Every machine undergoes a mandatory 72-hour dry-run factory test followed by live testing using customer-supplied corrugated board samples to verify register accuracy, folding squareness, and die-cut depth prior to crating.



How to Choose & Order





Define Technical Parameters: Establish maximum/minimum box blank dimensions, flute types processed, target daily output, and maximum color count.
Select Automation Level: Choose manual/semi-automatic mechanical adjustments for high-volume, low-changeover runs, or fully motorized servo-driven setups for high-frequency short runs.
Verify Facility Readiness: Confirm plant floor load-bearing capacity, electrical supply drops, and compressed air availability.
Order Execution Timeline:
Engineering Sign-off & Layout: 5 business days following technical parameter confirmation.
Manufacturing & FAT: Standard production cycle ranges from 60 to 90 days; factory inspection available prior to shipment.
Commissioning: On-site installation, mechanical/electrical calibration, and operator training conducted by factory-certified engineers.





Frequently Asked Questions





Q: What is the sustainable operating speed during multi-color print runs?

A: While the maximum mechanical speed reaches up to 250 sheets/min, real-world continuous output typically runs at 65% to 80% of rated speed depending on board warp, blank size, and ink drying constraints.

Q: How long does a complete job changeover take?

A: On motorized, computer-controlled configurations utilizing job memory recall, full order changeover—including printing plates, slotting knives, and die-cutter position reset—is completed within 8 to 15 minutes.

Q: Can the system handle warped or high-humidity corrugated boards without jamming?

A: Yes. The lead-edge vacuum feeding system features adjustable air volume control and high-friction feed belts designed to securely pull warped or heavy-duty double/triple-wall sheets without crushing flute structures.

Q: What level of operator training is required?

A: Standard operation requires 2 technicians per shift. The intuitive HMI touchscreen utilizes graphic iconography and error-diagnostic prompts. Comprehensive hands-on training is provided during on-site commissioning.

Q: How are anilox rolls and printing plates protected from damage during line stops?

A: The machine incorporates automatic plate-throw mechanisms that instantly lift printing cylinders away from the board when the feeder pauses, preventing plate degradation and ink pooling.

Q: What is the availability of critical spare parts and remote diagnostics?

A: Core electrical components (PLCs, servo drives) utilize globally available industrial brands (Siemens, Schneider, Mitsubishi). Standard systems include remote Ethernet diagnostic modules for real-time troubleshooting by engineering support staff.



modular-1
Request a Quote

To receive an engineering proposal and commercial quotation tailored to your plant specifications, submit the following parameters:
Maximum and minimum box blank dimensions (Length × Width).
Target flute types and daily volume output goals.
Number of print colors and die-cutting requirements.
Destination port for shipping calculation.
